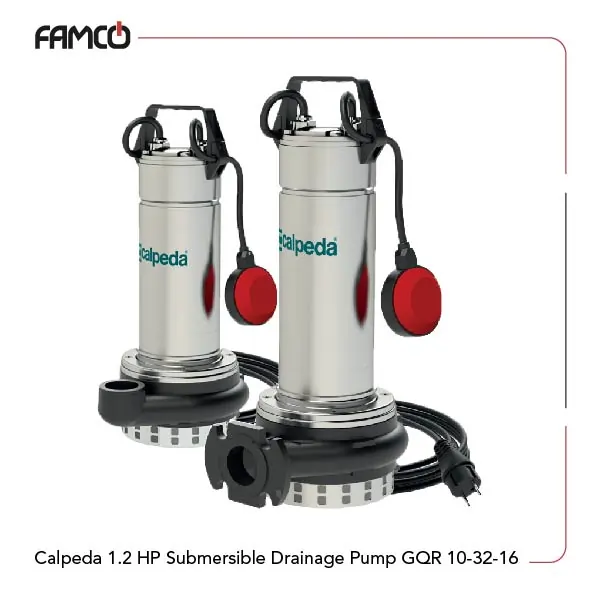

Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16

Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Specifications

Calpeda 1.2 HP submersible drainage pump GQR 10-32-16 is designed for efficient performance in various applications. This Calpeda drainage pump operates at a maximum liquid temperature of 35° C and can be immersed up to 5 meters deep. The minimum immersion depth in this product is set at 205 mm for different setups. The product’s rotation speed of 2900 rpm helps ensure quick and effective pumping. This pump is available in both three-phase (230-400V) and single-phase (230V) configurations to offer flexibility for different electrical systems. This pump features an insulation class of F and is protected with an IP X8 rating in continuous water immersion. The pump’s casing and impeller are made from durable cast iron GJL EN 1561, adding to the pump’s longevity and reliability. The handle is crafted from polypropylene and reinforced with stainless steel for added strength. The mechanical seals are chosen carefully and made from ceramic, carbon, and NBR, ensuring a tight seal and preventing leaks. The product’s power output of 0.9 kW (1.2 HP) and a head range of 2.3 to 16 meters is why it is suitable for various fluid transfer tasks.

Specification	Value
Liquid temperature	up to 35° C
Maximum immersion depth	5 m
Minimum immersion depth	205 mm
No. of poles	2
Rotation speed (rpm)	2900
Voltage (V)	three-phase	230-400
	single-phase	230
Insulation class	F
Protection	IP X8 (for continuous immersion)
Humidity-proof dry winding	Triple impregnation
No. of impellers	single-impeller
Power (kW)	0.9
Power (HP)	1.2
Head (m)	2.3-16

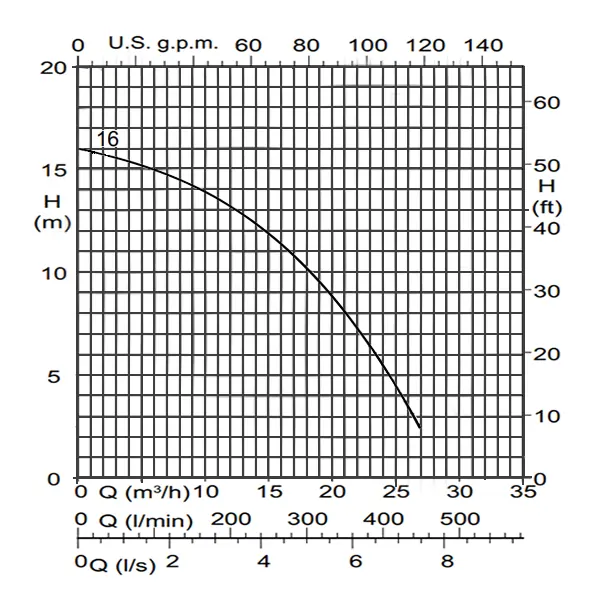

Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Performance Curve

Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Materials

• Pump casing: Cast iron GJL EN 1561
• Impeller: Cast iron GJL EN 1561
• Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
• Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
• Upper mechanical seal: Ceramic / Carbon / NBR
• Lower mechanical seal: Ceramic / Carbon / NBR
• Seal lubrication oil: Oil for food/pharmaceutical machinery



Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Technical Data

m³/h	0	3	6	9	12	15	18	21	24	27
l/min	0	50	100	150	200	250	300	350	400	450
Head (m)	16	15.5	15	14.2	13.2	11.8	10.2	8	5.5	2.3



Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Applications

• Drainage of flooded areas
• Irrigation systems for agriculture
• Industrial fluid transfer
• Water supply for construction sites



Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Benefits

• Durable cast iron construction for longevity
• High efficiency with a rotation speed of 2900 rpm
• IP X8 protection for continuous immersion
• Versatile power options for different setups



Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Price List

No.	Name	Price
1	Calpeda 1.2 HP Submersible Drainage Pump GQR 10-32-16 Price	Contact us
