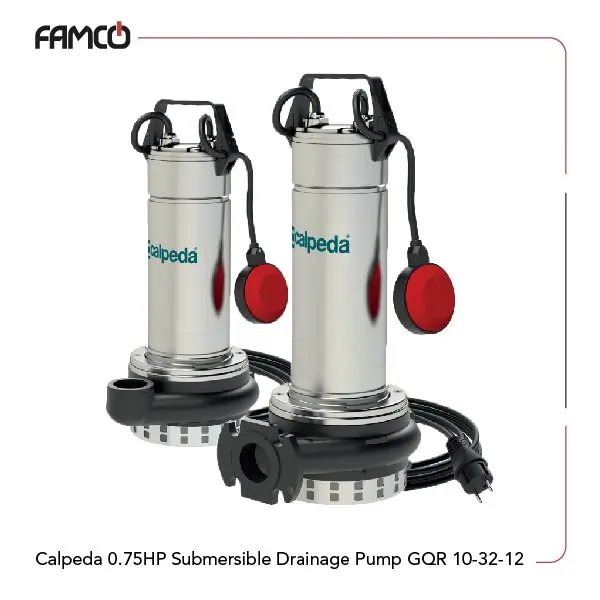

Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Specifications
Calpeda 0.75HP submersible drainage pump GQR 10-32-12 is designed for efficient performance in various applications. This Calpeda drainage pump operates at a maximum liquid temperature of 35° C and can be immersed up to 5 meters deep. The minimum immersion depth in this product is 205 mm to handle different water levels. The rotation speed of 2900 rpm ensures quick and effective pumping. This sturdy pump is available in both three-phase (230-400V) and single-phase (230V) configurations to comply with diverse electrical setups. It also features an insulation class of F and is protected with an IP X8 rating for continuous immersion in water. The pump’s casing and impeller are made from durable cast iron GJL EN 1561 for additional longevity and reliability. The shaft is crafted from chrome-nickel steel to maximize its strength and resistance to corrosion. Additionally, it includes a single-impeller design and operates continuously with a submerged motor for various applications.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| No. of poles | 2 | |
| Rotation speed (rpm) | 2900 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | single-impeller | |
| Power (kW) | 0.55 | |
| Power (HP) | 0.75 | |
| Head (m) | 3.2-12 | |
Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Materials
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Applications
- Irrigation systems for agriculture
- Water supply in residential buildings
- Drainage in construction sites
- Industrial water circulation systems
Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Head (m) | 12 | 11.6 | 11 | 10.2 | 9 | 7.5 | 5.5 | 3.2 |
Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Benefits
- Durable construction with cast iron and stainless steel components
- High efficiency with a rotation speed of 2900 rpm
- Versatile voltage options for different electrical setups
- Continuous operation capability for reliable performance
Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Price List
| No. | Name | Price |
| 1 | Calpeda 0.75HP Submersible Drainage Pump GQR 10-32-12 Price | Contact us |
