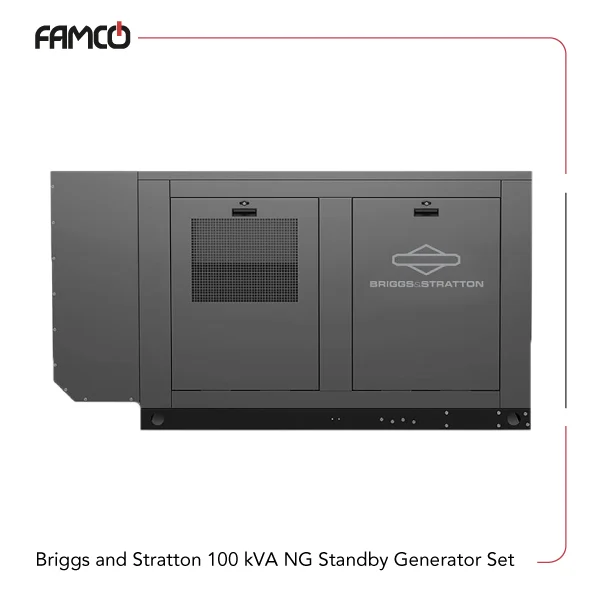

Briggs and Stratton 100 kVA NG Standby Generator Set Specifications
Briggs and Stratton 100 kVA NG standby generator set operates on a rated voltage of 120/240, 12/205, or 277/480 volts, with a frequency of 60 Hz. It features a 350-amp breaker for the highest voltage setting, and a 300-amp breaker for the mid-range voltage. The ambient temperature range for operation is between -20°C and 40°C, making it suitable for various environments. It delivers a running amperage of up to 333 amps and can produce 80 watts on natural gas or LP, with continuous duty ratings reaching 266 amps and 64 kW. This Briggs and Strantton generator is a three-phase, 4-cycle turbocharged engine running at 1800 RPM, with a displacement of 5.7 liters and a compression ratio of 9.4:1. It has a rated gross horsepower of 129 HP and features an electronic governor for precise control. The bore and stroke measure 101.6 mm by 88.4 mm, with eight cylinders. Noise levels at no load are around 79 dB(A). The cooling system is a closed-loop radiator, with a coolant capacity of 7.8 liters for the engine and 26.8 liters for the entire system. It uses natural gas as fuel and has a brushless alternator with either 4-lead or 12-lead configurations. The insulation rating is class H, and the generator is designed to handle a temperature rise of 125°C, ensuring durability and efficiency during operation.
| Specification | Value |
| Rated Voltage | 120/240, 12/205, 120/240, 277/480 |
| Frequency (Hz) | 60 |
| Generator Breaker (Amps) | 350, 300, 150 |
| Operating Ambient Temperature (°C / °F) | 28 – 40, -20 – 104 |
| Running Amperage (Amps) | 333, 277, 240, 120 |
| Rated power (NG / LP) | 80 / 80, 80 / 100 |
| Running Amperage – Continuous Duty (Amps) | 266, 222, 192, 96 |
| Running Watts – Continuous Duty (NG / LP) (kW / kVA) | 64 / 64, 64 / 80 |
| Phase | single- and three-phase |
| Type | 4-cycle |
| Aspiration | Turbo |
| Speed (RPM) | 1800 |
| Displacement (L / ci) | [‘5.7 / 350’] |
| Compression Ratio | 9.4:1 |
| Rated Horsepower (gross hp) | 129 |
| Governor Type | Electronic |
| Bore & Stroke (mm / in) | 101.6 x 88.4, 4.00 x 3.48 |
| Number of Cylinders | 8 |
| No Load dB(A) | 79 |
| Combustion Air (m³/min / cfm) | 6.9 / 244 |
| Cooling System Type | Radiator, Closed-Loop |
| Coolant Capacity (Engine Only) (L / qt) | 7.8 / 8.1 |
| Coolant Capacity (System Total) (L / qt) | 26.8 / 28.3 |
| Heat Rejected to Cooling Water | True |
| Fuel Type | Natural Gas |
| Alternator Type | Brushless, 4-Lead, Brushless, 12-Lead |
| Insulation Rating (Class) | H |
| Designed Temperature Rise (°C) | 125 |
Briggs and Stratton 100 kVA NG Standby Generator Set Applications
- Backup power for commercial buildings
- Construction site power supply
- Industrial equipment operation
- Large-scale event power needs
Briggs and Stratton 100 kVA NG Standby Generator Set Benefits
- High power output and efficiency
- Durable and reliable construction
- Flexible voltage and phase options
- Suitable for harsh environments
Briggs and Stratton 100 kVA NG Standby Generator Set Price List
| No. | Name | Price |
| 1 | Briggs and Stratton 100 kVA NG Standby Generator Set Price | Contact us |
