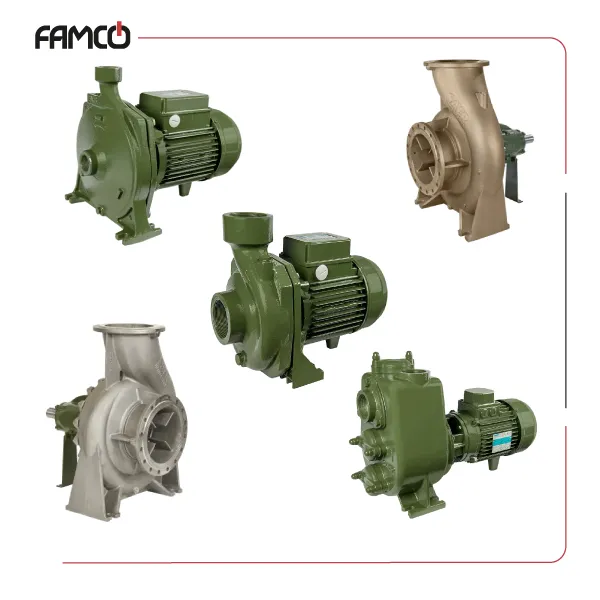

Saer Water Pumps

Saer Water Pumps Overview

SAER water pumps cover outputs from 0.37 to 7.5 kW (≈0.5-10 HP), delivering flows from 4.2 to 40 m³/h (≈70-667 l/min) with heads reaching up to 96 m in 50 Hz versions. Supplied by Famco Sanat, these units span everything from compact domestic pressure boosting to demanding irrigation and water transfer duties.

Saer water pumps are generally suitable for domestic and residential buildings. However, heavy-duty high-horsepower ones are used for light commercial setups, where clean water transfer with surface Saer pumps is required. The Saer water pump catalogue has you covered with exact data for each pump. This catalogue includes data specs of all the following series.

Saer Water Pumps Models and Best Series

While our salesexperts can help you find the right Saer pump, the following info gives you a clear idea of the right fit for you, based on the series alone.

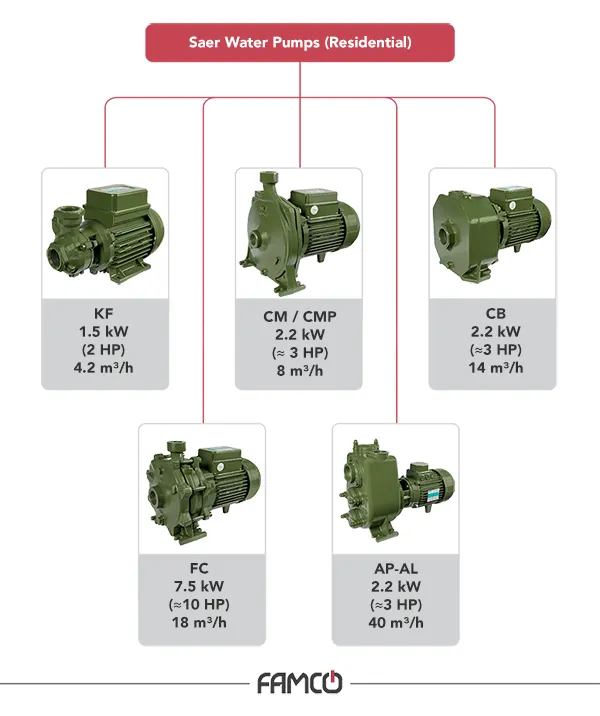

Residential Saer Water Pumps

KF Peripheral Impeller Pumps (“the green pump”)

Compact high-head pumps are ideal for small domestic systems.

• Max flow: 4.2 m³/h (≈70 l/min)
• Max head: 88 m
• Max power: 1.5 kW (≈2 HP)
• Excellent for boosting mains pressure and tank filling

KF is widely known in the Persian Gulf regions as the “green pump.”

CM / CMP Single-Impeller Centrifugal Pumps

Balanced performance for everyday residential use.

• Max flow: 8 m³/h (≈133 l/min)
• Max head: 59 m
• Max power: 2.2 kW (≈3 HP)

Suitable for water supply, gardening, and pressure boosting

CB Multi-Stage Centrifugal Pumps

Higher pressure with smoother operation.

• Max flow: 14 m³/h (≈233 l/min)
• Max head: 64 m
• Max power: 2.2 kW (≈3 HP)

Reliable choice for domestic systems and irrigation

FC Twin Opposing Impeller Pumps

High pressure without overloading the motor bearings

• Max flow: 18 m³/h (≈300 l/min)
• Max head: 96 m
• Max power: 7.5 kW (≈10 HP)

Ideal for demanding distribution, irrigation, and HVAC

AP-AL Self-Priming Pumps (Semi-Open Impeller)

Designed for real-world water conditions, including liquids containing small solids.

• Max flow: 40 m³/h (≈667 l/min)
• Max head: 18.7 m
• Max power: 2.2 kW (≈3 HP)
• Passes solids up to 8 mm

Suitable for irrigation, agriculture, and drainage

Used to increase water pressure, Saer jet pumps are also widely applied in residential systems. Depending on the installation, a Saer booster pump set may be the more suitable option.

For proper selection, the specialists at Famco Sanat can recommend the right configuration based on system requirements.

Saer pumps suitable for (clean) water transfer are: Surface Saer water pumps (residential or industrial-scale) Saer jet pumps Saer booster pumps

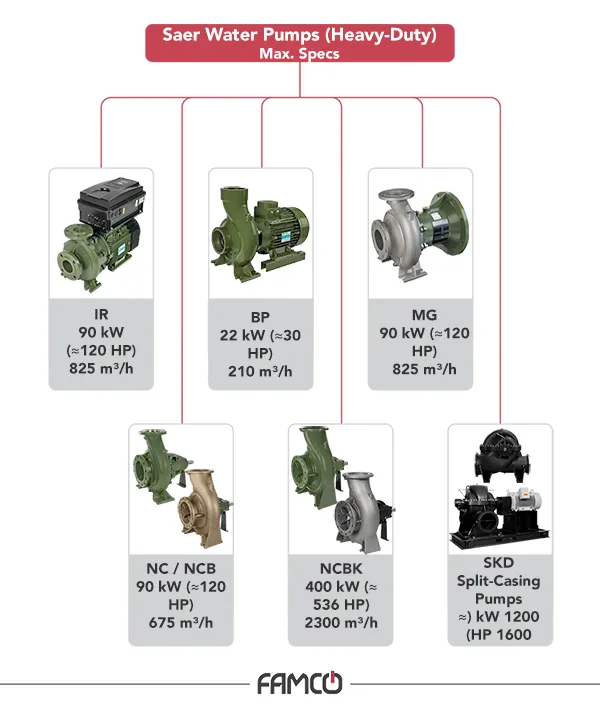

Heavy-Duty Saer Water Pumps

End-Suction Pumps

Common series include IR, BP, MG, NCB, and NCBK.

IR Series

Heavy-duty pumps for large water supply and HVAC systems.

• Max flow: 825 m³/h (≈13,750 l/min)
• Max head: 129 m
• Max power: 90 kW (≈120 HP)

Applications: recirculation systems, air conditioning plants, pressurisation groups

BP Series

Suitable for irrigation and raw water intake from natural sources.

• Max flow: 210 m³/h (≈3,500 l/min)
• Max head: 63 m
• Max power: 22 kW (≈30 HP)

Applications: overhead irrigation, pumping from lakes, rivers, and reservoirs

MG Series

Optimized for thermal systems and water circulation.

• Max flow: 825 m³/h (≈13,750 l/min)
• Max head: 129 m
• Max power: 90 kW (≈120 HP)

Applications: heating systems, heat recovery, pressurisation groups

NC / NCB Series

Versatile industrial pumps covering a wide range of sectors.

• Max flow: 675 m³/h (≈11,250 l/min)
• Max head: 129 m
• Max power: 90 kW (≈120 HP)

Applications: water supply, refrigeration systems, irrigation, industry, marine, and mining

NCBK Series

High-capacity pumps for very large installations.

• Max flow: 2300 m³/h (≈38,333 l/min)
• Max head: 97 m
• Max power: 400 kW (≈536 HP)

Applications: large irrigation systems, industrial supply, mining, and marine use

SKD Split-Casing Pumps

Extremely high-capacity pumps for major infrastructure and industrial projects.

• Max flow: 4500 m³/h (≈75,000 l/min)
• Max head: 318 m
• Max power: 1200 kW (≈1600 HP)

Applications: desalination plants, HVAC networks, water treatment, firefighting systems, maritime and offshore sectors

• Can be coupled to diesel engines
• Dual-wear ring design with enhanced durability

Saer Water Pumps Applications

Below is a simplified Saer water pump selection guide:

• Small homes & single units: KF (0.5 HP Saer water pumps) for pressure boosting and tank filling
• 2-3 storey buildings: CM/CMP or CB for shared supply systems (1 to 3 HP Saer water pumps)
• Higher-demand residential blocks: FC twin-impeller pumps for strong pressure delivery
• Irrigation, gardens, drainage: AP-AL self-priming series.

Note:

1. Domestic pumps typically fall in the 0.5-4 HP range, though larger twin-impeller units cover heavier needs.
2. Power alone doesn’t determine suitability. A 1 HP peripheral pump behaves very differently from a 1 HP centrifugal pump.
3. Advanced industrial-scale tasks relying on clean water transfer can also use Saer water pumps. But landing on the right horsepower requires an in-depth inspection (with expert consultation).

Saer Water Pumps Advantages

• Dedicated series for each application
• Stable hydraulic performance
• Durable cast-iron construction on key series
• High head capability with space-saving motors
• Straightforward installation and maintenance

Final Notes

Saer water pumps combine traditional centrifugal design with practical sizing for residential and light industrial use. Whether you need a modest pressure boost or a system that can push water up several floors without trouble, the water pumps lineup supplied by Famco Sanat offers sensible options.
