Saer Jet Pumps

Saer Jet Pumps Overview

Jet pumps work by creating suction through a jet and diffuser system, allowing water to be lifted from below the pump level while maintaining steady pressure at the outlet. This mechanism makes jet pumps, especially Saer jet pumps, suitable for drawing water from wells, tanks, and underground sources, with stable suction depth and continuous flow. Saer stands out with their jet pumps, now supplied throughout the UAE by Famco Sanat.





These jet pumps are typically used for clean water supply in residential buildings, villas, gardens, and small agricultural systems, as well as for pressure boosting in light commercial installations.

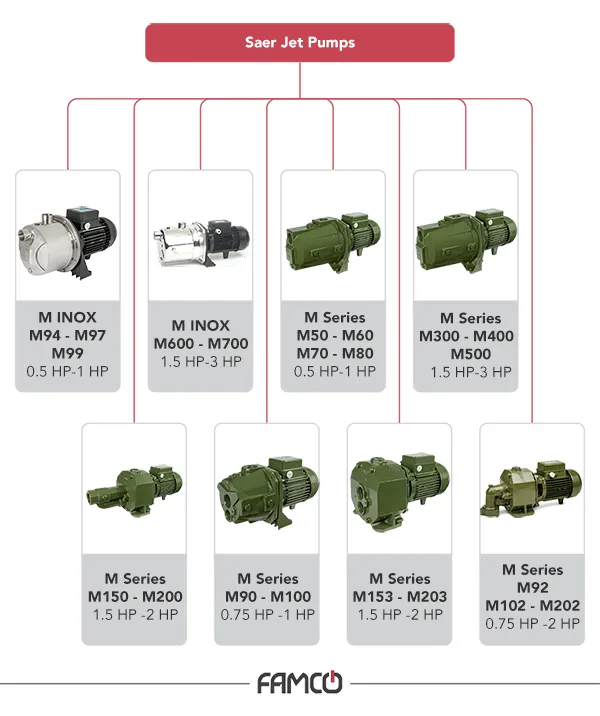

Saer Jet Pumps Models

Categorized into eight series, the M Saer jet pumps are manufactured so that everyone can find one well-matched to their tasks.

M INOX Series M94 – M97 – M99 Saer Jet Pumps

Designed for domestic and light-duty applications, this series offers compact jet pumps with stainless steel construction and stable hydraulic performance.

• Power range: 0.5-1 HP
• Frequency / speed: 50Hz ~3000 1/min
• Maximum head: 39-48 m (model dependent)
• Maximum flow rate: 50-60 l/min (model dependent)
• Pump body: stainless steel
• Impeller: thermoplastic resin
• Maximum ambient temperature: +40°C M

INOX Series M600 – M700 Saer Jet Pumps

This series of M INOX Saer jet pumps is made to cater to more demanding usage patterns:

• Power range: 1.5-3 HP
• Maximum delivery head: 48-69 m (based on model)
• Maximum flow rate: 117-167 l/min (based on model)
• Pump body: stainless steel
• Impeller: thermoplastic resin
• Maximum ambient temperature: +40°C

M Series M50 – M60 – M70 – M80 Saer Jet Pumps

This collection of jet pumps by Saer is well-suited for domestic or small-scale tasks requiring moderate yet stable head and flow.

• Power range: 0.5-1 HP
• Maximum delivery head: 33-55 m (model dependent)
• Maximum flow rate: 40-50 l/min (model dependent)
• Pump body: stainless steel
• Impeller: thermoplastic resin or brass (model dependent)
• Maximum ambient temperature: +40°C

M Series M300 – M400 – M500 Saer Jet Pumps

Built for higher flow demands, these models are suitable for larger residential systems and light commercial use.

• Power range: 1.5-3 HP
• Frequency / speed: 50Hz – 3000 1/min
• Maximum flow rate: 60-167 l/min (model dependent)
• Pump body: stainless steel
• Impeller: thermoplastic resin or brass (model dependent)
• Maximum ambient temperature: +40°C

M Series M150 – M200 Saer Jet Pumps

With a balance of power and flow, these jet pumps match mid-range usages.

• Power range: 1.5-2 HP
• Maximum flow rate: 67-100 l/min (model dependent)
• Pump body: stainless steel
• Impeller: thermoplastic resin or brass (model dependent)
• Maximum ambient temperature: +40°C

M Series M90 – M100 Saer Jet Pumps

Compact jet pumps are designed for installations where suction depth and manageable weight are key considerations.

• Power range: 0.75-1 HP
• Maximum suction depth: 9-15 m (model dependent)
• Weight: 14-16 kg (model dependent)

M Series M153 – M203 Saer Jet Pumps

These models are intended for applications requiring higher head values and deeper suction capability.

• Power range: 1.5-2 HP
• Maximum head: up to 2870 (or lower, depending on model)
• Maximum suction depth: 9-15 m

M Series M92 – M102 – M202 Saer Jet Pumps

This collection of Saer jet pumps’ flexible range covers a broad operating window of flow, head, and suction depth.

• Power range: 0.75-2 HP
• Maximum flow rate: 35-74 l/min (model dependent)
• Maximum head: 1680-3200 (model dependent)
• Maximum suction depth: 9-15 m

Saer Jet Pump Series	Power	Max. head (varies by model)	Max. flow rate (l/min)	Key feature
	HP
M INOX M94 – M97 – M99	0.5-1	39-48 m	50-60	Stainless steel body, thermoplastic impeller, compact
M INOX M600 – M700	1.5-3	48-69 m	117-167	Higher capacity, stainless steel construction
M Series M50 – M60 – M70 – M80	0.5-1	35-55 m	40-50	Domestic use, resin or brass impeller
M Series M300 – M400 – M500	1.5-3	–	60-167	Higher flow for larger systems
M Series M150 – M200	1.5-2	–	67-100	Mid-range balance of power and flow
M Series M90 – M100	0.75-1	–	–	Suction depth 9-15 m, lightweight
M Series M153 – M203	1.5-2	up to 2870 m	–	High head, deep suction
M Series M92 – M102 – M202	0.75-2	1680-3200 m	35-74	Wide operating range, deep suction

Saer Jet Pumps Applications

Saer jet pumps are commonly used for domestic water supply, pressure boosting, garden irrigation, small agricultural systems, and water transfer from wells or tanks.

Their suction capability makes them suitable for locations where water sources are below pump level, while stainless steel components support longer service life in everyday use.

Saer Jet Pumps Advantages

• Wide range of models covering domestic to light commercial needs
• Stainless steel pump bodies for corrosion resistance
• Options with thermoplastic resin or brass impellers
• Suitable for deep suction applications
• Straightforward installation and maintenance

Saer Jet Pumps Maintenance

Tips Basic care helps Saer jet pumps operate smoothly, avoiding common performance issues.

• Before operation, make sure the pump casing is filled with sufficient water.
• When pumping dirty liquids, install a filter on the suction line.
• Install the suction line correctly to prevent air trapping, which can disrupt the suction mechanism in jet pumps.

Saer Jet Pumps UAE Suppliers

When sourcing Saer pumps in the UAE, working with authorized suppliers ensures access to original products, correct technical selection, and up-to-date Saer Jet Pumps price list information.

Authenticated suppliers, such as Famco Sanat, can help you with after-sales support, spare parts, and guidance on selecting the right jet pump for local UAE water conditions.
