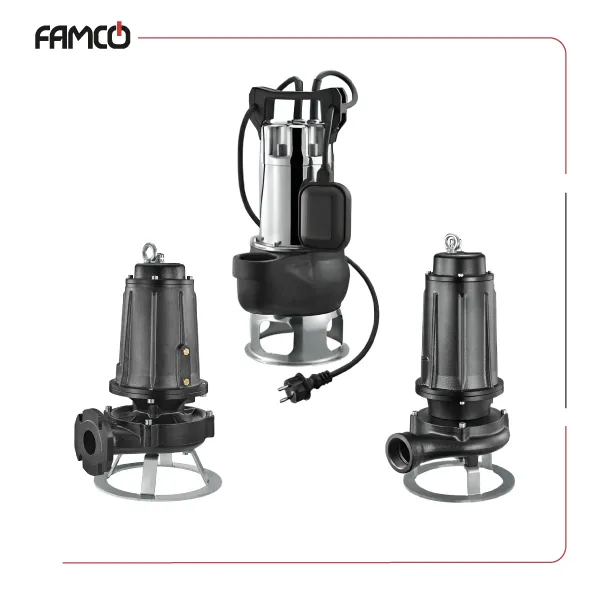

Pentax sewage pumps are engineered to cover a power range from approximately 1 to 7.5 kW (1.3 to 10 HP), with maximum flow rates starting at 220 l/min and reaching up to 3400 l/min (depending on the series and model). High-capacity series such as DM, DM4, and DV4 are designed for efficient transfer of grey and black water at medium head, while pressure-focused models like DC and DTR support longer discharge lines and more demanding installations. Hydraulic performance spans from low-head drainage duties at around 6.6 m to high-pressure sewage applications exceeding 55 m of head, making the range suitable for both residential and industrial wastewater systems.

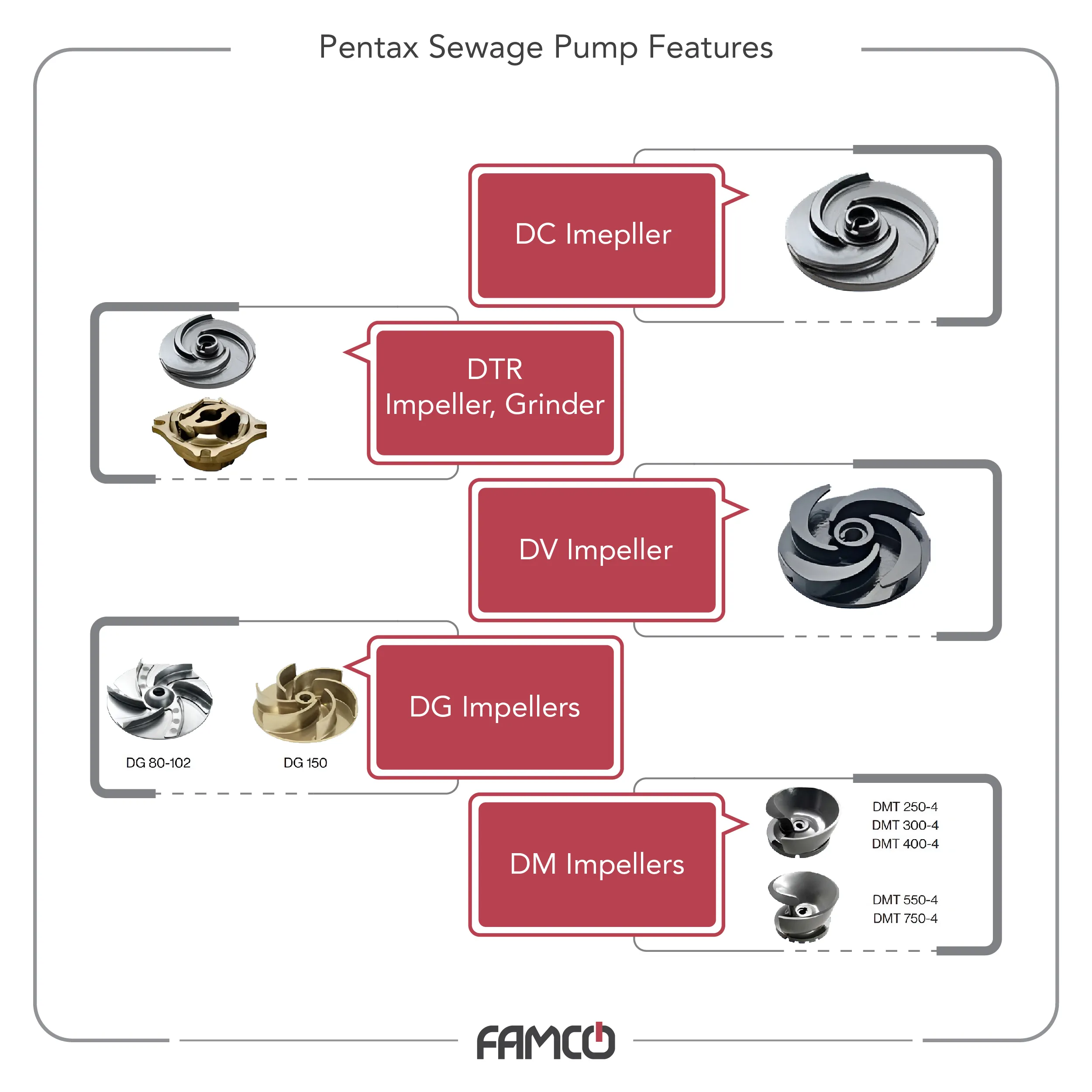

Most Pentax sewage pumps feature top-grade cast iron pump bodies and impellers, with vortex designs that minimize clogging. The grinder-equipped options available are ready and set for the toughest tasks.
Pentax Sewage Pumps Best Models
Below is an overview of the most favored Pentax sewage pumps in the UAE market.
Pentax wastewater pumps are either catered to:
- lighter applications,
- or heavy-duty models for professional sewage management setups.
1. Pentax pumps most suited for domestic or light-duty commercial applications are listed here, providing a clearer comparative view.
| domestic and light-duty pumps | power rating | Max. flow rate
(l/min) |
Max. head height
(m) |
impeller type and material | pump body |
| DG | P1: 1.05-1.55 kW | up to 400 | 6.6-10.4 | Vortex impeller, stainless steel or brass | Cast iron |
| DX | P1: 1.05-1.35 kW | up to 300 | 7-10 | Vortex impeller, stainless steel | stainless steel |
| DB | P1: 1.35-1.7 kW | 600-650 | 11.4-13.6 | Stainless steel impeller | Cast iron |
| DTR 101 | P1: 1.2 kW | 220 | 19 | Brass impeller + stainless steel grinder | Cast iron |
Pentax DG Sewage Pump Series
The Pentax DG sewage pump series is mainly used for domestic and residential wastewater applications. Depending on the model, the impeller is either vortex-type stainless steel or brass, and the unit is paired with a 2-pole induction motor.
Pentax DX Sewage Pump Series
The Pentax DX sewage pump series features a vortex-type stainless steel impeller and supports solid handling up to 28 mm. These Pentax pumps are available in single-phase and three-phase versions.
2. Well-suited for industrial and heavy-duty usages, the Pentax sewage pumps below can handle significant flow rates and delivery head heights, each made with precision.
| domestic and light-duty pumps | power rating | Max. flow rate
(l/min) |
Max. head height
(m) |
impeller type and material | pump body | liquid type / notes |
| DM | P2: 1.5-10 | 1100–2400 l/min | 17-34.9 | Cast iron impeller | Cast iron | Grey & black water, high capacity at medium head |
| DM4 | P2: 2.5–7.5 HP | 1600–3000 l/min | 10.8-17 | Cast iron impeller | Cast iron | Very high capacity with reliable head performance |
| DV | P2: 1.5–10 HP | 900–1000 l/min | 12.2-26.7 | Cast iron impeller | Cast iron | Very heavy-duty wastewater use |
| DV4 | P2: 2.5-7.5 HP | 2000–3400 l/min | 8.7-14.7 | Set-back vortex impeller, cast iron | Cast iron | High-flow sewage handling, up to 20 m submergence |
| DC | P2: 1.5-10 HP | 700–900 l/min | 19-55 | Cast iron impeller | Cast iron | High-pressure sewage with small solids |
| DTR | P2: 1.5–10 HP | Up to 300 l/min | 20-55 | Grinder, stainless steel | Cast iron | Demanding sewage with a grinding requirement |
Pentax DV Sewage Pumps
The Pentax DV sewage pump is designed to operate in ambient temperatures between 0 and 40°C. The DV Pentax pumps support prefilter sieve sizes ranging from 45 to 50 mm, depending on the model.
Pentax DC Sewage Pump Series
The 1.1 to 7.5 kW Pentax DC sewage pumps handle smaller solids with a prefilter sieve up to 10 mm, matched with higher pressure capabilities.
Pentax DM Sewage Pumps
These pumps handle amounts of solids, equipped with a prefilter sieve for solids up to 50 mm.
Pentax DTR Sewage Pump Series
The Pentax DTR sewage pump series is designed for demanding wastewater applications. Available in 1.5 to 10 HP models, these pumps include a treated stainless steel grinder, allowing them to handle challenging waste materials.
To view full specifications, model variations, Pentax sewage pump prices, and quotations, visit the Pentax product pages on the Famco Sanat website or contact our technical team directly.
Pentax Sewage Pumps Benefits and Advantages
Pentax wastewater pumps are all-in-one wastewater treatment and movement solutions with diverse advantages:
- Industrial or domestic series of sewage and wastewater pumps
- Options for solid handling and grinding applications: the DTR series
- Available in single-phase and three-phase configurations
Pentax Sewage Pumps Applications
Sewage Pentax pumps are commonly used in:
- Residential buildings and villas
- Commercial properties
- Industrial wastewater systems
- Sewage lift stations
- Utility and service facilities
Pentax Sewage Pumps Repair Services
In addition to supply, Pentax sewage pump repair services are available through experienced UAE technicians. Maintenance services typically include:
- inspection,
- part replacement,
- performance checks,
- and system troubleshooting.
Conclusion
With Pentax sewage pump suppliers in UAE, you can get the latest price offers and Pentax sewage pumps catalogs. Our experts at Famco Sanat are more than happy to help you with model selection and original Pentax sewage and wastewater pumps, along with technical guidance and after-sales support.
