In the UAE’s dynamic business environment, where efficiency and durability are of utmost importance, the Ebara 3D Cast-Iron Centrifugal Pump emerges as a key player. This series of pumps is engineered to meet the high demands of various industries with a power range spanning from 1.1 kW to 11 kW, demonstrating its capability to handle diverse operational needs. Centrifugal pumps like the Ebara 3D series are essential in the industrial sector for fluid transfer, using rotational kinetic energy to move fluids efficiently. The Ebara 3D series, with its robust cast iron construction and versatile design, is particularly suited for applications such as water supply, pressure boosting, and irrigation, aligning perfectly with the requirements of the UAE’s industrial and agricultural sectors. The series’ adaptability is evident in its wide-ranging applications, from maintaining flow in HVAC systems to boosting water pressure in supply networks. These pumps are designed to withstand harsh environmental conditions, a critical consideration in the challenging climate of the UAE. With stainless steel impellers, these pumps offer not only durability but also efficient operation. Complying with EN733 standards, the Ebara 3D series is available in various configurations, from monobloc to models with elastic couplings, catering to the diverse requirements of different businesses. The extended shaft motor design and back pull-out construction enhance the ease of maintenance, making these pumps a practical choice for industries prioritizing performance and practicality. The Ebara 3D Cast-Iron Centrifugal Pump, therefore, is not just a piece of equipment; it represents a reliable solution for continuous, efficient, and trouble-free operations in various industrial contexts in the UAE.
Selling the Ebara 3D Cast-Iron Centrifugal Pump
The Ebara 3D Cast-Iron Centrifugal Pump is not just a product; it’s a testament to Ebara’s commitment to quality and efficiency in fluid management solutions. This pump represents a key offering in the broader category of industrial and commercial pumps, fitting snugly into the niche of high-performance centrifugal pumps.
The Ebara 3D series can be best described as an end-suction centrifugal pump, renowned for its robust construction and versatile applications. This series exemplifies the very essence of centrifugal pumps, which are designed to convert rotational energy into fluid energy, making them ideal for a wide range of fluid movement tasks. The Ebara 3D series, with its various models, caters to a spectrum of needs and specifications. Each model within the series is tailored to offer specific flow rates, head, motor power, and other technical specifications, akin to how different models of a product like the iPhone 14 vary in memory capacity. Within this category, the Ebara 3D series stands out due to its distinctive features. It can be tagged or classified under various attributes such as ‘centrifugal pump’, ‘industrial pump’, ‘cast-iron pump’, and more, depending on its specific application and design characteristics.
The Ebara 3D series is a versatile and powerful solution in the realm of water pumps, offering a blend of efficiency, durability, and adaptability that is critical for a wide range of industrial and commercial applications. Its classification and positioning within the broader category of pumps highlight its significance and utility in various sectors. This table provides detailed specifications for different models of the Ebara 3D Cast-Iron Centrifugal Pump, including their power ratings, flow rates (in liters per minute and cubic meters per hour), and head (in meters) across different flow rates.
Structural Specifications of Ebara 3D Cast-Iron Centrifugal Pump
The Ebara 3D Cast-Iron Centrifugal Pump is a marvel of engineering, exemplifying meticulous design tailored for optimal performance. Let’s delve into its structural specifics:
| Model | Power (kW) | Power (HP) | Max Head (meters) | Max Flow (m³/hour) |
| 3D(.) 32-125/1.1 (M) | 1.1 | 1.5 | 22.4 | 20 |
| 3D(.) 32-160/1.5 (M) | 1.5 | 2 | 27.5 | 20 |
| 3D(.) 32-160/2.2 (M) | 2.2 | 3 | 35.4 | 20 |
| 3D(.) 32-200/3.0 | 3 | 4 | 43 | 20 |
| 3D(.) 32-200/4.0 | 4 | 5.5 | 52.5 | 21.6 |
| 3D(.) 32-200/7.5 | 7.5 | 10 | 67 | 27 |
| 3D(.) 40-125/1.5 (M) | 1.5 | 2 | 18.2 | 42 |
| 3D(.) 40-125/2.2 (M) | 2.2 | 3 | 24.4 | 42 |
| 3D(.) 40-160/3.0 | 3 | 4 | 29.4 | 42 |
| 3D(.) 40-160/4.0 | 4 | 5.5 | 37.2 | 42 |
| 3D(.) 40-200/5.5 | 5.5 | 7.5 | 44.5 | 42 |
| 3D(.) 40-200/7.5 | 7.5 | 10 | 53.5 | 42 |
| 3D(.) 40-200/11 | 11 | 15 | 70 | 42 |
| 3D(.) 50-125/2.2 (M) | 2.2 | 3 | 18 | 60 |
| 3D(.) 50-125/3.0 | 3 | 4 | 21.5 | 72 |
| 3D(.) 50-125/4.0 | 4 | 5.5 | 25.8 | 72 |
| 3D(.) 50-160/5.5 | 5.5 | 7.5 | 32 | 72 |
| 3D(.) 50-160/7.5 | 7.5 | 10 | 38.2 | 72 |
| 3D(.) 50-200/9.2 | 9.2 | 12.5 | 49.5 | 72 |
| 3D(.) 50-200/11 | 11 | 15 | 55.5 | 72 |
| 3D(.) 50-200/15 | 15 | 20 | 69.5 | 72 |
| 3D(.) 65-125/4.0 | 4 | 5.5 | 20.4 | 114 |
| 3D(.) 65-125/5.5 | 5.5 | 7.5 | 25 | 126 |
| 3D(.) 65-125/7.5 | 7.5 | 10 | 29.6 | 132 |
| 3D(.) 65-160/7.5 | 7.5 | 10 | 29 | 126 |
| 3D(.) 65-160/9.2 | 9.2 | 12.5 | 34.7 | 132 |
| 3D(.) 65-160/11 | 11 | 15 | 39 | 138 |
| 3D(.) 65-160/15 | 15 | 20 | 46 | 138 |
| 3D(.) 65-200/15 | 15 | 20 | 51 | 132 |
| 3D(.) 65-200/18.5 | 18.5 | 25 | 58 | 138 |
| 3D(.) 65-200/22 | 22 | 30 | 65.5 | 138 |
Device Dimensions
These pumps are designed with dimensions that ensure a balance between compactness and robust performance. The length and width are proportioned to accommodate the size of the inlet and outlet openings, which is a pivotal aspect in determining the pump’s efficiency. The relationship between these dimensions and the pump’s engine power is finely calibrated, ensuring an effective and streamlined operation.
Inlet and Outlet Size
The size of the inlet and outlet is crucial, as it directly impacts the pump’s capacity and flow rate. Ebara 3D pumps feature inlet/outlet sizes designed for optimal fluid dynamics, contributing to their high efficiency.
Material Construction
The Ebara 3D series is constructed from high-grade cast iron, ensuring durability and resistance to wear and tear. The use of stainless steel for the impellers further enhances their longevity and performance, especially in harsh environments prevalent in industrial applications.
Product Size and Weight
These pumps are characterized by their practical size and manageable weight, which facilitates easy installation and maintenance. Their volume is optimized to deliver maximum efficiency without occupying excessive space.
Color and Appearance
The Ebara 3D series boasts a professional and sleek appearance, with a color scheme that resonates with industrial utility and sophistication. The design not only focuses on aesthetic appeal but also on functional aspects, making these pumps a fitting choice for various industrial settings. Ebara 3D Cast-Iron Centrifugal Pump combines practical dimensions, robust material construction, and an efficient design, making it a prime choice for diverse industrial applications.
Technical Specifications of the Ebara 3D Cast-Iron Pump
The Ebara 3D Cast-Iron Centrifugal Pump showcases a range of technical specifications that underline its efficiency and versatility in various applications. This table provides a comprehensive overview of the different models of the Ebara 3D Cast-Iron Centrifugal Pump, showcasing their power ratings, maximum achievable head, and flow rates.
| Ebara 3D motor Specifications | ||||
| Type | 3D | 3DS | 3DP | |
| Electric – TEFC | ||||
| Three Phase | ||||
| Efficiency level | IE3 only 460V | IE2 | ||
| No. of Poles | 2 | |||
| Rotation speed [min-1] | » 3500 | |||
| Insulation Class | F | F (class B for temperature rise) | ||
| Protection degree (CEI EN 60034-5) | IP55 | |||
| Power rating | [kW] | 2.2/22 | ||
| [HP] | 3.0/30 | |||
| Frequency [Hz] | 60 | |||
| Voltage [V] | 220/380-460 ±10% (IE3* up to 4.0 kW) 380-460/660 ±10% (IE3* 5.5 kW and above) | 265/460 ±10% (up to 4.0 kW) 460 ±10% (5.5 kW and above) | ||
| Over load protection | Provided by the user | |||
| Casing material | Aluminium | |||
| Motor support | Cast iron – Aluminium | |||
| Dimensions of cable entry | PG13.5-PG16-PG21-M20x1.5-M25x1.5M | M40x1.5-M50x1.5,M63x1.5 | ||
| Flange mount (IEC motor) | / | IM B35 | ||
Ebara 3D Cast-iron Centrifugal Pump Electric Motor Characteristics
Power Range: The Ebara 3D series offers a versatile power range, with IE3 efficiency motors ranging from 1.1 kW to 22 kW. This range ensures adaptability for both light and heavy-duty applications.
Insulation Class & Protection: These pumps feature an insulation class of F (temperature rise class B) and a protection degree of IP 55, ensuring safety and durability under various operating conditions.
Voltage and Frequency: They operate at a frequency of 50 Hz, with a voltage range of 230/400 ±10% for up to 4 kW and 400/690 ±10% for 5.5 kW and above, accommodating different power supply standards. Hydraulic Specifications
Liquid Handling: The Ebara 3D series is designed for clean water handling, with a working temperature range of -5°C to +90°C (max. +110°C for H HS models).
Maximum Working Pressure: These pumps can handle a maximum working pressure, showcasing their robustness in high-pressure applications.
Ebara 3D Cast-iron Centrifugal Pump Material Specifications
Construction and Impeller Material: The construction includes a closed centrifugal type impeller for 32, 40, 50 series, and reinforced laser welding for the 40-200/11 model. The impeller material is designed for durability and efficient operation.
Shaft Seal Type: The pumps use a mechanical seal, ensuring reliable and leak-free performance.
Dimensions and Cable Entry: The Ebara 3D pumps offer compact and efficient design, with dimensions tailored for easy installation and maintenance. The dimensions of cable entry vary, ensuring compatibility with different installation environments.
| Ebara 3D SERIES PUMP | ||
| Liquid Handled | Type of liquid | Clean water |
| Working temperature [°C] | min. -5 max.+90 max. +110 (H, HS, HW, HSW) max. +120 (E, U3U3EGG, U3CEGG, Q1Q1EGG, Q1U3EGG, Q1AEGG version) | |
| Maximum working pressure [MPa] | 1 | |
| Construction | Impeller | Closed centrifugal type for 32, 40, 50 series Reinforced laser welding for 40-200/9.26, 50-200/156 Closed centrifugal three dimensional blades for 65 series |
| Shaft seal type | Mechanical seal | |
| Bearing | Sealed ball bearing | |
| Pipe Connection | Suction | Flange DN 50, 65, 80 according to EN 1092-2 |
| Discharge | Flange DN 32, 40, 50, 65 according to EN 1092-2 | |
| Material | Casing | Cast iron EN-GJL-250-EN 1561 |
| Impeller | AISI 304 (32, 40, 50 series) AISI 316 made by precision casting (65 series) | |
| Shaft seal | Ceramic/Carbon/NBR (see MECHANICAL SEAL pages 307-310) | |
| Shaft | AISI 304 (wet extension) | |
| Bracket | Aluminium/Cast iron | |
| Accessory | Counter flange | DN 32, 40, 50, 65, 80 (see FITTINGS TABLE page 315) |
| Applicable standard of test | ISO 9006:2012 – Grade 3B | |
Technical specifications mentioned above, detailed in the provided document, highlight the Ebara 3D series’ adaptability, efficiency, and robustness, making them suitable for a wide range of industrial and commercial applications.
This table provides detailed dimensions and weight for various models of the Ebara 3D Cast-Iron Centrifugal Pump. Each model’s dimensions include multiple parameters such as inlet and outlet diameters, connection sizes, and various measurements related to the pump’s physical structure.
Applications of Water Pumps and the Ebara 3D Cast-Iron Centrifugal Pump
The Ebara 3D Cast-Iron Centrifugal Pump is a crucial asset in numerous settings, offering substantial benefits like consistent water pressure, efficient fluid transfer, and reliable operation across various applications. These benefits are pivotal for environments requiring dependable water supply and pressure.
Schools and Public Places with Weak Water Pressure: These pumps significantly enhance water pressure, ensuring adequate flow for sanitation and hydration needs in educational and public facilities.
Public Farms: The Ebara 3D series excels in irrigation, providing the necessary water flow and pressure for large-scale agricultural activities, crucial for sustaining crop health and yield.
Mosques and Religious Places: In places of worship, where cleanliness and water usage are integral, these pumps ensure a consistent and reliable water supply, essential for ablution and other religious practices.
Public Organizations with Medium Population: These pumps cater to the water supply and pressure boosting needs of medium-sized organizations, ensuring smooth operation of daily activities.
Fire Departments: Their robust design and reliable performance make them ideal for fire suppression systems, offering high-pressure water delivery essential in firefighting.
Residential, Commercial, or Industrial Complexes: In these varied settings, the Ebara 3D series ensures an uninterrupted water supply, essential for domestic, commercial, and industrial operations, enhancing overall efficiency and productivity.

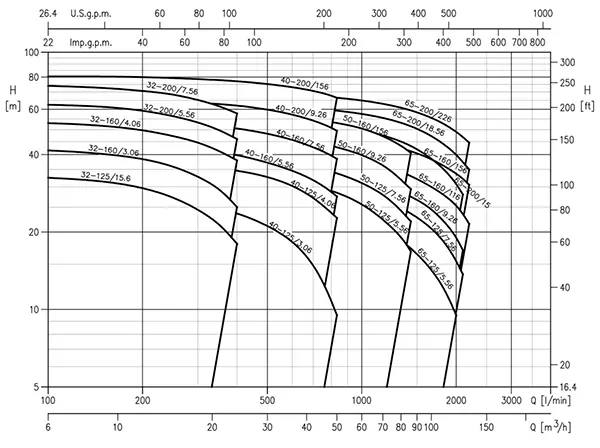

Each application benefits from the pump’s ability to handle significant flow rates (up to 132 m³/hour) and head (up to 70.0 m), as seen in the provided resources, making the Ebara 3D series a versatile and indispensable tool in these environments.
The Benefits of Using a Water Pump and the Ebara 3D Cast-Iron Centrifugal Pump
The utilization of the Ebara 3D Cast-Iron Centrifugal Pump brings a multitude of advantages, significantly enhancing water management systems in various settings. These benefits are not just operational but also contribute to overall efficiency and sustainability.
Strengthening and Increasing the Pressure of Hot and Cold Water: This pump efficiently boosts water pressure in both hot and cold water systems, ensuring consistent flow and pressure in residential, commercial, and industrial settings.
Enhancing Water Supply Networks: It plays a crucial role in augmenting the pressure in water supply systems, ensuring that water reaches all parts of a network, even in high-demand scenarios.
Feeding and Pumping Water for Public Purposes: The Ebara 3D pump is adept at handling large volumes of water, making it ideal for public utilities and facilities.
Emptying Tanks with Clean Water: Its robust design enables it to efficiently empty tanks, ensuring swift and effective water transfer or drainage.
Transferring Water in Industries: The pump’s versatility allows it to transfer water in various directions, crucial in industrial processes and factories, where precise and reliable water movement is essential.
These advantages, rooted in the pump’s innovative design and construction, underscore its role as an indispensable tool in modern water management and industrial operations.
The Price of 3D Cast-Iron Centrifugal Pump in Ebara
When considering the purchase of a water pump like the Ebara 3D series, understanding the pricing is crucial. The cost of these pumps can vary significantly, influenced by a range of factors. It’s important to note that prices are subject to change due to market fluctuations, currency exchange rates, and other economic factors.
Determinants of Price:
Flow Rate and Head: The pump’s capacity to move water (flow rate) and the height it can elevate water (head) are key determinants of its price. Higher capacities typically command a higher price.
Engine Power: The power of the motor, measured in kilowatts (kW), significantly influences the cost. More powerful motors, needed for demanding tasks, are priced higher.
Impeller Type: The material and design of the impeller also play a role in pricing. Advanced materials or specialized designs can add to the cost.
Volume and Size: The physical size and volume of the pump can affect the price, especially for larger models designed for industrial use.
When assessing the price of the Ebara 3D pump in Famco, it’s essential to compare it with competitors’ offerings. Given the global market dynamics, prices in different regions may vary. Buyers in the UAE, for instance, should consider import costs and local market conditions.
The Ebara 3D series, with its high-quality construction and performance, may be positioned in the mid to high range of the market, reflecting its capabilities and the aforementioned factors. However, the long-term cost benefits such as durability, efficiency, and reduced maintenance needs should also be taken into account when considering the overall value. Buyers are advised to check the latest prices and compare them with other options available in the market to make an informed decision.
In the fast-paced and ever-evolving landscape of UAE’s industrial and commercial sectors, the decision to invest in a reliable water pump like the Ebara 3D Cast-Iron Centrifugal Pump is not merely a purchase; it is a strategic move towards operational excellence. This conclusion aims to encapsulate the essence of the Ebara 3D series, highlighting its pivotal role and substantial value in diverse applications.
The Ebara 3D series, with its robust construction, versatile performance, and adherence to high standards, stands out as a noteworthy investment. Its ability to efficiently manage water supply and pressure in various settings – from agricultural farms to industrial complexes – underscores its indispensable nature. The technical prowess of these pumps, coupled with their durability and efficiency, translates into long-term cost savings and operational reliability, factors that are vital for businesses in the UAE. Furthermore, Famco’s pricing of the Ebara 3D series is competitive, reflecting a balance between quality and cost-efficiency.
This reasonable pricing, along with the expertise and support provided by Famco’s team, makes the purchase decision easier for discerning businessmen and buyers in the UAE. The company’s focus on delivering value and quality aligns well with the needs and expectations of its clientele.
In conclusion, the Ebara 3D Cast-Iron Centrifugal Pump represents more than just a piece of equipment; it embodies a solution – a reliable, efficient, and cost-effective solution for varied water management needs.
With Famco, you are not just buying a pump; you are investing in a partnership that promises quality, support, and value, ensuring that your operational needs are met with the highest standards of excellence.
