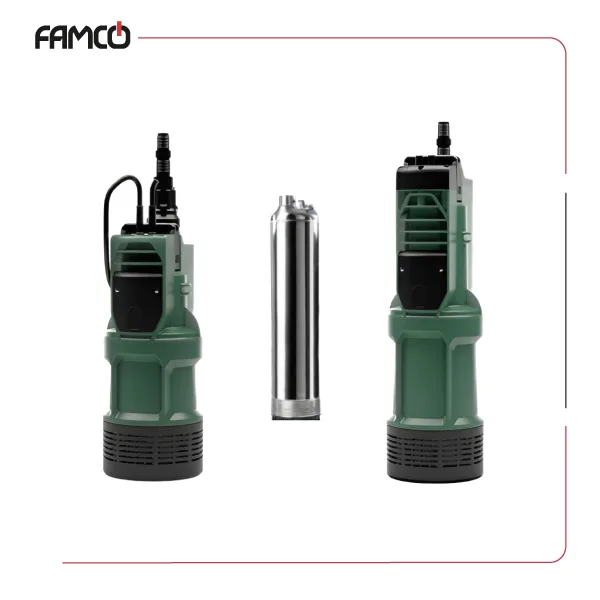

Dab Submersible Pumps Overview
Dab submersible pumps, with a power range of 0.5 HP to 10 HP, have recorded flow rates as low as 25 l/min to 360 l/min with the maximum heads reaching 427 m (depending on the series and model).
Designed specifically for submerged conditions, these Dab pumps support residential, commercial, agricultural, and light industrial water systems. Maximum immersion depths reach 20 m for compact multistage units and extend to 300 m. Dab submersible pumps are supplied with technical support and documentation by Famco Sanat, so you can keep access to the correct configurations, control options, and compatible motors.
Below you may find a structured comparison of the main Dab submersible pump series, giving you a highlight of what makes each range distinct.
Dab submersible pumps Models
Dab submersible pumps are engineered for clean water handling, with controlled sand tolerance up to 50 g/m³ depending on the series, liquid temperatures from 0°C to +40°C, and multistage settings to stabilize pressure delivery.
From compact 3-inch Micra units to the high-capacity S4 AMEIRA borehole pumps, Dab pumps provide scalable solutions.
| Series | Bore Size/Type | Power Range | Max. Flow Rate | Max. Head | Key Materials | Unique Features |
| Pulsar | 5-inch, multistage | 0.86-1.7 HP | 80-120 l/min | 44-88 m | AISI 304 body, technopolymer impellers | High-pressure boosting with double mechanical seal and oil chamber; CB versions with control box |
| Pulsar Dry | 5-inch, submersible or surface | 0.86-1.7 HP (up to 8.3 HP CB) | 80-120 l/min | 44-88 m | Technopolymer impellers | Flexible installation as a submersible or surface unit; higher power options with CB |
| S4 AMEIRA | 4-inch borehole | 0.5-10 HP | 25-360 l/min | 28-427 m | AISI 304 stainless steel, technopolymer | Wide hydraulic range, oil- or water-filled motor options for civil, commercial, and agricultural use |

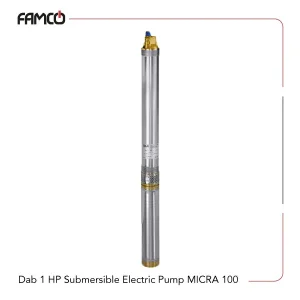

| Micra | 3-inch wells | 0.5-1 HP | Up to 45 l/min | 45-90 m | Stainless steel, centrifugal design | Compact solution for narrow wells and pressure vessel filling |
| Micra HS | 3-inch wells/tanks | Up to 2 HP (P2) | 42-84 l/min | Up to 150 m | Noryl impellers | High-head performance in small diameters, ideal for pressurization |
| Diver | multistage monobloc | 0.75-2 HP | 80-150 l/min | 24-100 m | Noryl with stainless steel thrust ring | Pumped-liquid cooling, designed for domestic and small agricultural systems |
Dab Submersible Pump Series Comparison
In addition to clean-water systems, you can choose the right Dab sewage pumps to handle wastewater movement tasks. The Dab drainage pumps are also available for fully submerged drainage tasks.
For access to the latest and most detailed Dab submersible pumps catalog, technical datasheets, and motor compatibility, Famco Sanat sales specialists in the UAE provide up-to-date support.
Dab Submersible Pumps Applications
- Residential pressure boosting and garden irrigation: Pulsar, Pulsar Dry, Micra HS
- Narrow wells and cisterns: Micra, Micra HS
- Deep boreholes and high-head systems: Either S4 AMEIRA complete Dab pumping units
- Small agricultural and sprinkler systems: DIVER, S4 AMEIRA
- Commercial and civil water supply in hot UAE climates: S4 AMEIRA
Dab Submersible Pumps Benefits
- Broad coverage with low to high heads and flow rates
- Materials such as AISI 304 and AISI 316 stainless steel for durability
- Proven reliability of Dab pumps for submerged conditions
- Separate Dab pumps and motors availability to get the perfect match
- Availability of control box (CB) options for simplified operation
Conclusion
Whether you need compact submersible pumps for residential or industrial-grade use or high-power solutions, Dab submersible pumps offer a complete portfolio. Tailored quotations, updated catalogs, and technical guidance from pump selection to motor pairing are available directly from Famco Sanat salespeople in the UAE. This way, you can get what works out for you and your pumping systems.
